Well No. 3

Methodist Church and School in

Quinta Linea

Sponsor - The Memorial United Methodist Church

Fernandina Beach, Florida

Quinta Linea is a homestead community opened by the government of Paraguay 15 years ago and is now the home of hundreds of families.  The Methodist Church of Paraguay has served the region for almost 10 years with a church and a Christian school for grades 1 through 6, with 75 students.  Living at the church/school complex are several families which consist of almost 20 people, all who depend upon well water for drinking, cooking and sanitation.

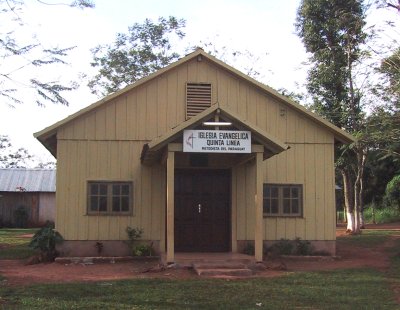

Methodist Church at Quinta Linea

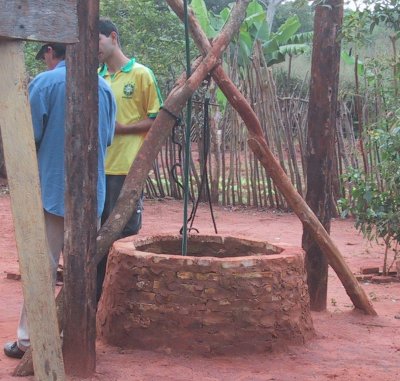

The current well - only 12 inches of water for almost 20 people

... and was full of ants!

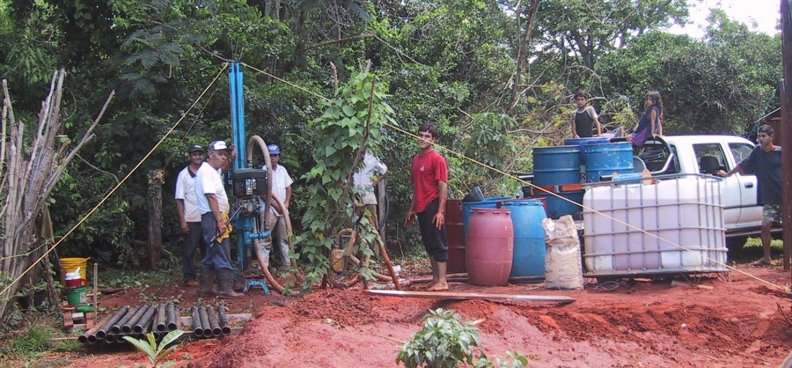

 The drill site set-up - drilling in the jungle!

However, the locally sandy soil has lead to the collapse of the first two hand dug wells at the church, and the current well has only 12 inches of water.  The Agua de Vida Ministry drilled a well for the church in December, 2002, as well as the installation of a bathroom and clothes washing facility for the local ladies and church members.

Clothes washing day - the old fashion way

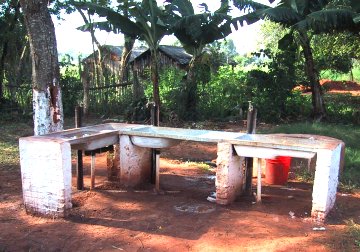

The Agua de Vida Ministry built a new clothes washing station with RUNNING WATER! No more buckets!

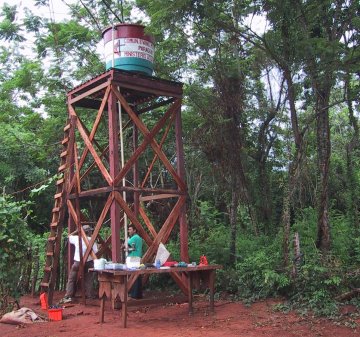

250 gallon elevated tank - ample water pressure - complete with the Methodist Church Cross & Flame!

 Technical Details



Sponsor:    The Memorial United Methodist Church, Amelia Island, Florida

Drilling date: December 1, 2002

Location:   Latitude -   S 24°26.216'       Longitude - W 56°07.816'

Elevation:   224 meters above mean sea level

Total cost:    $ 2,324

Drill depth: 46 meters

Soil types encountered:    Sandy clay, clay, fine sand, sandstone

Static groundwater level:   12.7 meters below ground surface

Dynamic groundwater level:  ____  meters below ground surface

Installed well depth:  44 meters

Length of screened section:  18 meters

Length of gravel packed section:  20 meters

Length and type of sealed section:  1.5 meters cement/bentonite grout

Pump description:    Electric submersible, 1 HP, single phase 220 volt

Depth to base of pump:   39 meters

Flow rate:    2,000   liters per hour

Water analysis results: Microbiologic -

                                            Microscopic -
